Agentic AI overview

AI Agents — mission, tasks, tools, guardrails, publish, public embed, playground, evals, and production controls.

Agents (sidebar: Agents, route /app/agents) are Convoship's LLM-first bots. They reason over a mission and persona, match user intent to Tasks, execute Tools through a real dispatcher, and enforce Guardrails before and after each turn. They are separate from Assistants (/app/assistants), which use scripted intents and flow graphs.

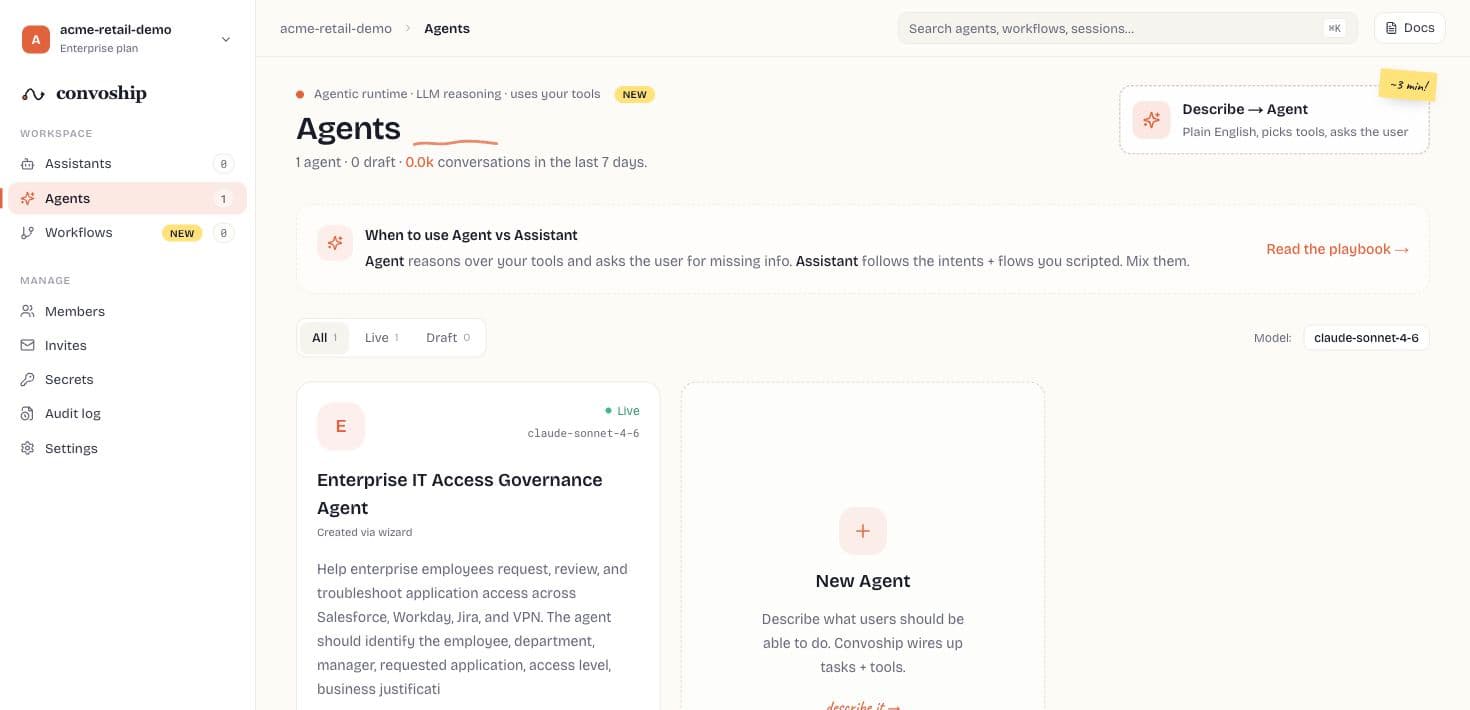

AI Agents dashboard with live agent card and agentic bot controls
The Agents dashboard is the implementation hub for LLM-first bots. Each card exposes status, model, tasks, tools, channels, and recent conversation signal.

Fresh workspaces start with zero agents. Use Read the playbook on the dashboard (/docs/agent-vs-assistant) when choosing between an Agent and an Assistant.

Implementation path

  1. Write the mission as the operating contract for the Agent, including what it should refuse or escalate.
  2. Derive or create Tasks, then bind only the tools each task is allowed to call.
  3. Configure tool handlers with secrets, test dispatch, and verify trace output before asking the LLM to use them.
  4. Add Knowledge sources and guardrails, then test in Playground with realistic user phrasing.
  5. Run evals, publish a version, copy the publicToken embed, and monitor Conversations plus Analytics.

How a turn works

  1. Task match — keyword match on task examples narrows which tools the LLM may call.
  2. Pre-tool guardrails — AUTH, LIMIT, and BUDGET can block tool execution.
  3. LLM loop — multi-step reasoning with tool_use / tool_result blocks (caps: max_llm_steps_per_conv, max_tool_calls_per_turn).
  4. Tool dispatch — http_post, webhook (HMAC-signed), python_callable, or noop stub until configured.
  5. Post-reply guardrails — REDACT and ESCALATE on the outbound message.
  6. Persist — Playground and public embed write AiAgentConversation + AiAgentTraceEvent (PII-redacted at rest).

Landing dashboard

  • Filter tabs — All, Live, Draft with live counts.
  • Sort — Recently updated, Name A→Z.
  • Agent cards — status, model label, task/tool counts, 7-day conversations, channel chips, auto-resolved %.
  • New Agent — /app/agents/new four-step wizard with draft autosave.

Agent shell (Design + Operate)

TabRoutePurpose
Brain/app/agents/{slug}Mission summary, persona, recent convos, quick stats
Tasks.../tasksIntent cards — example phrase, needs[], tool_names[], SENSITIVE/FALLBACK flag
Tools.../toolsTool catalog + handler editor (kind + JSON config) + test dispatch
Knowledge.../knowledgeRAG sources (file/URL); retrieved in playground and public turns
Persona.../personaTitle, tone chips, voice, boundaries
Memory.../memoryLabeled memory slots for long-running context
Guardrails.../guardrailsAUTH, LIMIT, REDACT, ESCALATE, BUDGET — five defaults seeded at agent create
Deploy.../publishPublish, public token, embed snippet, version history, eval pass rates, rollback
Playground.../playgroundStudio chat with SSE streaming (?stream=true)
Conversations.../convosProduction + playground traffic
Evals.../evalsRegression cases + publish trend chart + per-version drill-down
Audit.../auditAiAgentAuditEvent trail for admin mutations
Analytics.../analyticsKPIs + daily conversation chart

Publish vs draft

  • Draft — editable rows (tasks, tools, guardrails) used in Playground and eval runs.
  • Publish — sets status live, bumps version label (v1 → v2), mints public_token if missing, snapshots AiAgentVersion.
  • Public runtime — embed and POST /v1/public/ai-agents/{public_token}/turn load the published snapshot, not draft edits.
  • Eval gate — when Workspace.eval_pass_threshold > 0, publish runs all evals and blocks if pass rate is below threshold.
  • Rollback — POST .../rollback/{version_id} restores a prior snapshot to the live agent.

LLM provider & BYOK

All agent LLM calls use Claude (Anthropic). The platform default model is Claude Sonnet 4.5. Per-workspace BYOK: Workspace Settings → AI Agent LLM — stores an encrypted API key used by playground, evals, and the public channel when configured.

Channels

Agents can be connected to omni-channel surfaces (web widget, Twilio, Zendesk, Genesys, ServiceNow, custom webhooks) just like Assistants. Configure channel connections from the Channels tab or the Deploy tab after publishing. Channel connections route inbound messages to the published agent snapshot.

New Agent wizard

See /docs/new-agent-wizard for step-by-step fields. Summary: Mission → Tools catalog → Behavior (persona, caps, guardrails) → Review POST /v1/ai-agents.
